Welded Tube Mill
- Model : 63.5mm×3.0mm-RE60
- Categories : Tube Mill
- Payment Terms : L/C,T/T
- Brand Name : Reliance
- Place of Origin : China
- Application
- Technical Parameters
- Equipment List
- Components
- FAQs
- Catalog
Furniture/ornamental for high quality tube with aesthetic surface
Automotive to comply with the high demand standard of automotive industry
Mechanical tube for precision tube as well as for high-resistant material
Structural high productivity and good mechanical properties
Water/gas to comply with the norms
Heat exchanger for pressure, boiler and heat exchanger tubing
Steel profiles
Work Flow:
Coil loading—Uncoiling—Pinching & Leveling—End Shearing–‐Strip joining—Hoop cage/ Horizontal Spiral Accumulator—Forming,–‐HF Welding–Outside burr removal–Water Cooling–‐Sizing & straightening–‐Measuring roll—Flying saw cutting—Run out conveyor
Raw material | Hot rolled steel, cold rolled steel, galvanized steel |
Round tube outer diameter | 16-63.5mm |
Wall thickness Round tube | 1.0-3.0mm |
Square tube | 19.05×19.05,22.2×22.2, 25.4×25.4, 31.8×31.8, 38.1×38.1,50.8×50.8 |
Rectangular tube | 38.1×19.05, 38.1×25.4, 50.8×25.4, 50.8×38.1 |
Wall thickness Square & Rectangular tube | 2.5mm |
Tube welding speed | 40-80m/min |
Main DC Drive | 132W |
High frequency welder | 200kW |
Entry section | |||||
Uncoiler | Double Mandrel Uncoiler | ||||
Shear & End Welder | Automatic | ||||
Pneumatic shear | |||||

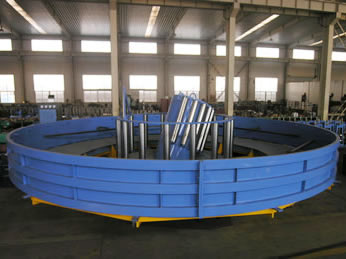

Accumulator | Hoop Cage | Horizontal Spiral Accumulator | |||
Forming section | |||||
Side guide & Flatten | Seven flattening roll | ||||
Round shape Forming | Roller set change | Cassette-Bed Quick change | |||
Welding section | |||||
Seam guide roll stand | |||||
Squeeze roll stand | |||||
Outer weld bead removal | |||||
H.F.Welder | Solid State | Vacuum Tube | |||
Cooling unit | |||||
Sizing & strengthening section | |||||
Sizing | Roller set change | Cassette-Bed Quick change | |||
Turk Head | Single Station | ||||
Measuring roll stand | Speed & length measuring | ||||
Cutting & discharging | |||||
Flying Saw | Pneumatic Friction Saw | Flying Cold Saw | |||
Run out conveyor | One side | Double side |
1.Uncoiler
2. End shear and welder

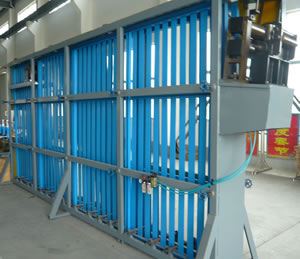

3.Accumulator
4.Forming & Sizing Unit
5.Cutting Saw
6.Solid State H.F. Welder
7.Mould and spare parts
