Complete Industrial and Commercial Shutter Door Manufacturing Solution
- The raw material is galvanized steel, aluminum, stainless steel, PU foam-filled, etc.
- Thickness ranges from 0.6 to 2.0mm.
- Material yield strength 345Mpa.
- Integratepunching, roll forming, flying cutting, auto stacking.
- Turnkey solutions are available for shutter door slat, door guide, bottom slat, octagonal tube production.
Reliance Shutter Door Roll Forming Machine Assure Your Shutter Door System Quality Perfect
Custom Your Shutter Door Roll Forming Machines
The roller shutter door is a type of door that consists of many horizontal slats hinged together. Through the door opener, the roller shutter slats are raised up or down so that the door can open and close along with the door guide rail. If you are a roller shutter door manufacturer, you will need a high-quality roller shutter roll forming machine for your business. It’s also called shutter roll forming machine, roller shutter forming machine, rolling door roll forming machine, roller shutter door roll forming machine, shutter door forming machine, etc.
Reliance Shutter Door Roll Forming Machines Use the Famous Brand For Critical Parts
Storage & Logistics
The most common roll up shutter door is curved slat and flat slat. Reliance developed both types of shutter roll forming machine. Reliance can make the machine according to your shutter door drawing.

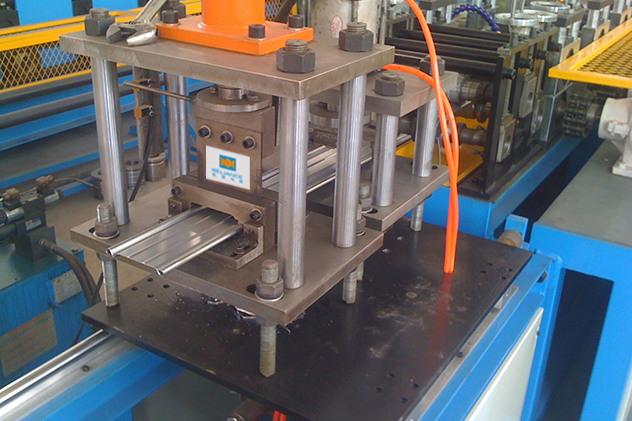

The perforated roller shutter door will need the mechanical press with punch mould to make uniform holes. The line speed can reach 6 to 8m/min.
Reliance has the technology to use a single strip to make double skin PU insulated roller shutter door roll forming machine. This technology improves the shutter door quality.

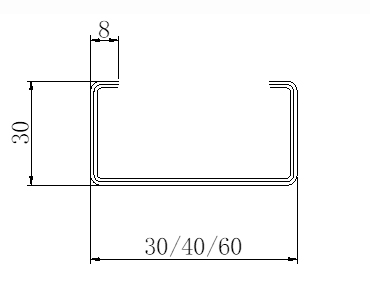

The door guide is mostly U section in 1mm to 2mm thickness. The raw material is galvanized steel, stainless steel, etc.
The bottom slat is made according to customer’s drawing or sample. The material is galvanized steel in 1mm to 2mm thickness range.

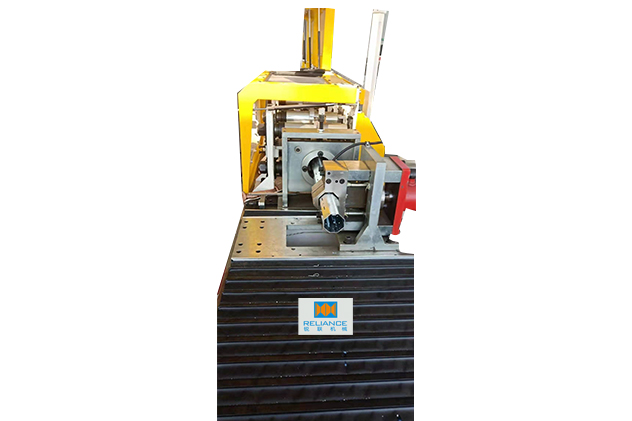

The octagonal tube is a lock-seam type section with holes. Reliance developed cassette type roll forming machine can make different diameter octagonal tubes in one machine. The raw material is galvanized steel in 1mm to 2mm thickness range.
Reliance Shutter Door Roll Forming Machines
Customized SolutionReliance can provide customized rolling door roll forming machine design according to your requirements.
InstallationReliance engineers are available for overseas installation, commissioning, and training. It will assure our roller shutter door roll forming machine work to output high-quality roller shutter slats.
WarrantyReliance will provide one year warranty after installation and commissioning.
Free ConsultationReliance experts will provide free consultation for your rolling shutter roll forming machine solutions.
Why Reliance Shutter Door Roll Forming Machine
Reliance machinery has much experience in designing and making a variety of roller shutter forming machines. There are many applications for roller shutters, which are split into three applications: commercial, industrial, and domestic.
Advantage of Reliance roller shutter forming machine
- Raw material: Reliance roller shutter roll forming machine is designed to produce roller shutter door slats in a variety of materials, including pre-painted steel, Z275 galvanized steel, stainless steel, and aluminum, etc.
- Variety designs：Reliance Machinery can roll form a wide range of shape roller shutter slats, such as flat slats, curved slats, and back-skin slats and perforated slats, etc. Besides, there is PU or polyurethane foam insulated roller shutter which is used in fire doors. If you have your design, we can design according to your roller shutter drawing. The common use size is 75 and 100mm pitch width.
- Thickness range and product length: Reliance rolling door roll forming machine can proceed material thickness range between 0.6 to 1.2mm in one machine. In some case, can work from 1.5 to 2.0mm as you need. Gauge ranges from 26-gauge to 16-gauge are commonly used in this industry. The product length is allowed any length by setting from the touch screen.

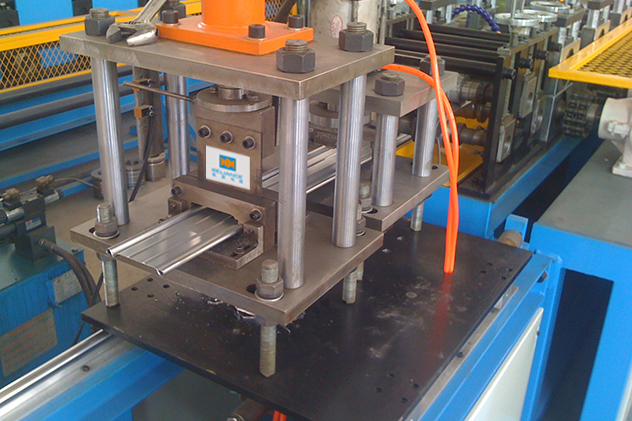

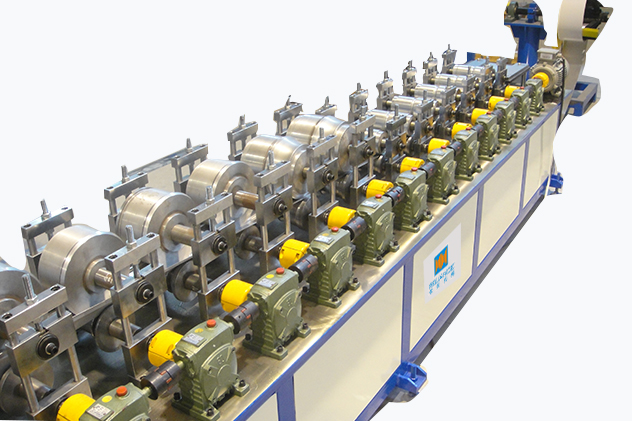

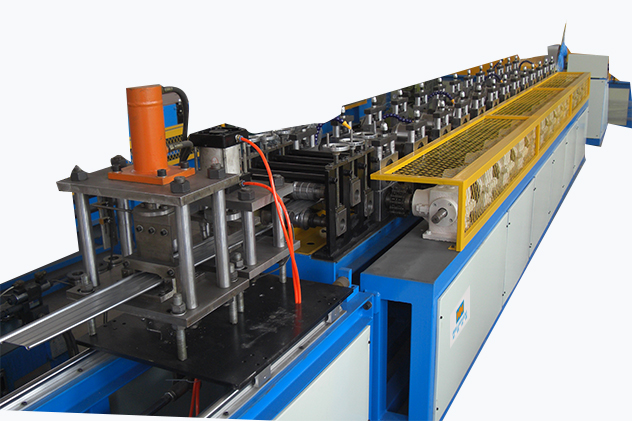

Equipment list: Roller shutter door roll forming machine consists of manual decoiler, entry guide, rollformer, hydraulic cutting, operation panel, and runout table. If perforated roller shutter slat, there is with punching unit. Improve the line speed, and there is an option with a mechanical press for punching holes.

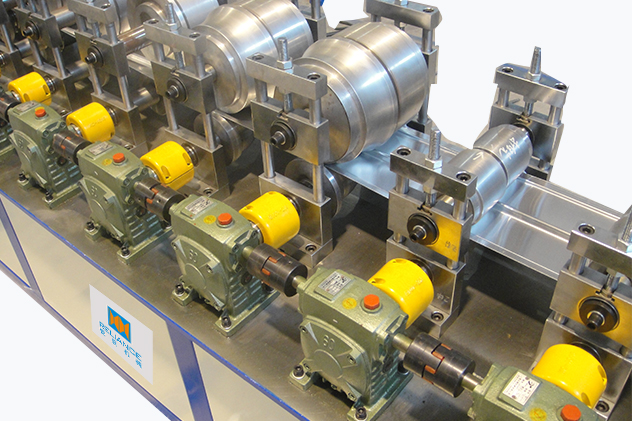

- To keep the machine long service life, all our rollers, punch mould, and the cutting tool is with harden treatment. It will assure you will always produce high-quality roller shutter door slats without breakdown.
- If you don’t yet have any skilled worker, the Reliance team will provide a training service to help your start up this business.
If you are planning to make roller shutter products, please feel free to contact us.
- Equipment list

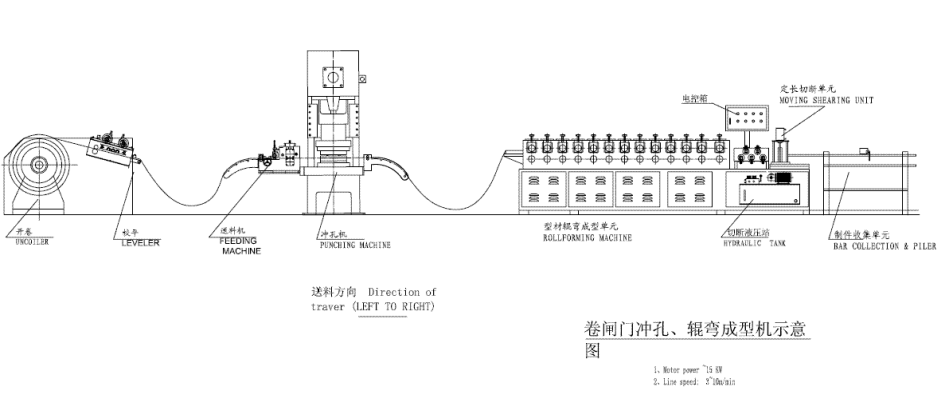

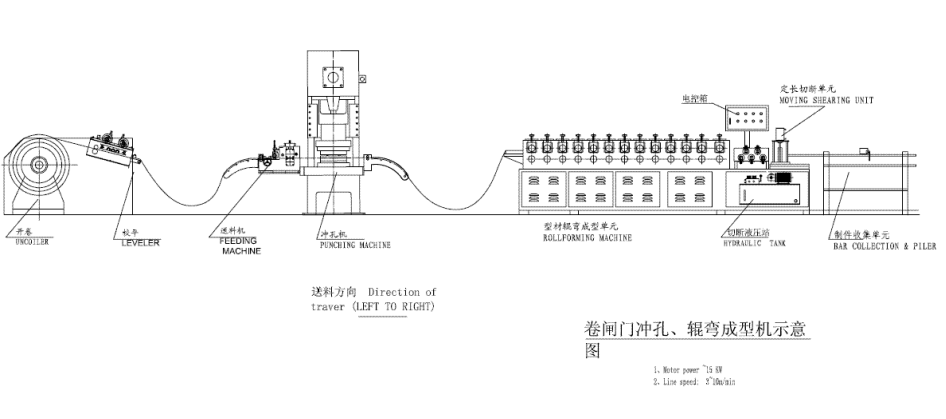

- Layout Drawing

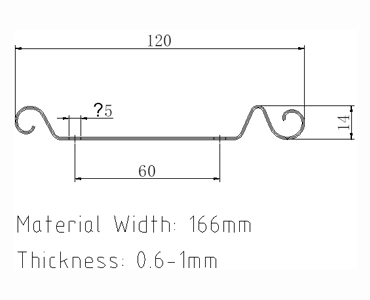

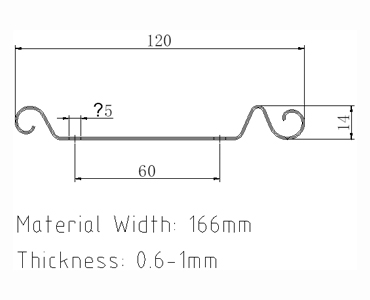

- Profile Drawing
|1||Suitable Material||Galvanized Steel Coil|
|2||Material Width||According to Profile Drawing|
|3||Material Thickness||0.8-1.2 mm|
|4||Roll forming speed||10-15 m/min (Exclude Punching & Cutting Time)|
|1||Hydraulic Decoiler||1 set|
|2||Loading Coil Car (Option)||1 set|
|4||Servo Roll Feeder||1 set|
|5||Online Hydraulic Punching Equipment||1 set|
|6||Rollformer with tooling||1 set|
|7||Straightening Device||1 set|
|8||Flying cut-off machine||1 set|
|9||Run Out Table or automatic stacking device||1 set|
|10||Siemens Or Mitsubishi PLC and Touchable Screen are used for data processing and setting.||1 set|
Reliance Shutter Door Roll Forming Machines
- Roll Up Shutter Door
- Perforated Roller Shutter
- Insulated Roller Shutter Door
- Door Guide
- Bottom Slat
- Octagonal Tube
Roll Up Shutter Door
Roll up shutter door is precisely roll-formed by shutter door roll forming machine. The industrial and commercial shutter door roll up and down with curved or flat shutter slats. The standard garage door shutter material is galvanized steel, stainless steel in thickness range 0.6 to 1.5mm.
Perforated Roller Shutter
The perforated roller shutter is precise roll-formed by the shutter roll forming machine. Perforated roller shutters are popular in the commercial section and retail industry. There are uniform holes in the roller shutter slats so that offers maximum security and see-through feature. It will need a mechanical press with a punching mold to punch all holes.
Insulated Roller Shutter Door
The insulated roller shutter door is precise roll-formed by the rolling door roll forming machine. When you want the insulated overhead door for your building, insulated roller garage doors are the best choice. This garage door is with double skin and injected with polyurethane foam. The standard material is galvanized steel, stainless steel, and aluminum in thickness range 0.6 to 1.5mm.

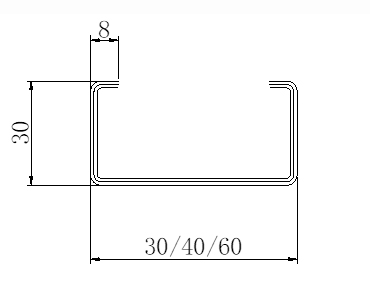

The door guide is continuous roll-formed from steel coil roller shutter door roll forming machine. Guiding tracks are installed for roller shutter slats roll up and down. The standard material is galvanized steel, in thickness range 1.0 to 2.0mm.
The bottom slat is continuous roll-formed from steel coil by rolling shutter roll forming machine. You can find the bottom slat at the bottom of the shutter door slats. The section is different from other roller shutter slats. The standard material is galvanized steel, in thickness range 1.0 to 2.0mm.

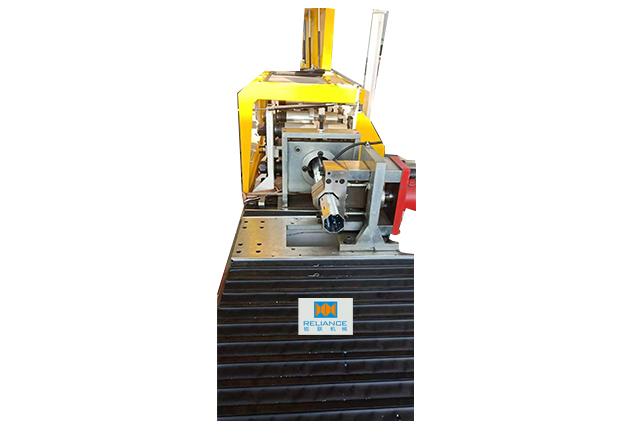

The octagonal tube is roll-formed from steel coil by roller shutter forming machine. An octagonal tube is placed inside of shutter box as shaft. It’s the core part of the shutter door barrel. The standard material is galvanized steel, in thickness range 1.0 to 2.0mm. In the octagonal tube, there are holes for installation.
