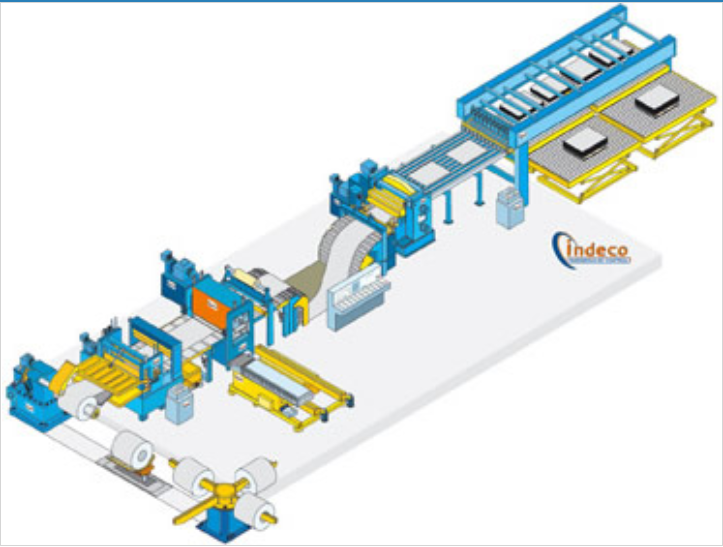

Rotary Shear Cut to length Line
- Model : 2013/4/8101957298
- Categories : Cut to length line
- Payment Terms : L/C,T/T
- Brand Name : Reliance
- Place of Origin : China
- Feature
- Technical Parameter
- Profile Drawing
- FAQs
- Catalog
1. The cutting part of our rotary shear is comprised of an upper blade holder and a lower blade holder. The two slide holders carry out synchronous rotation and are connected to a linear guide rail. When the crankshaft rotates, the cutting station cuts and conveys the material.
2. The upper blade is of rectangular shape and the lower one is of “V” shape. They are made of Cr12MoV. The upper slide rest can be conveniently adjusted to change the cutting clearance.
3. The drive motor of this rotary shear is AC servo spindle motor. It is connected to the transmission shaft with a conical connector, which has the capability of enduring frequent impact.
| Model/ | Thickness(mm) | Width(mm) | Shearing Accuracy(mm) | Max.Line Speed m/min | Max.Cutting Speed(spm) | Coil Weight(ton) |
| RE-2×650 | 0.2-2 | 100-650 | ±0.3/1000mm | 60 | 150 | 8 |
| RE-2×800 | 0.2-2 | 100-800 | 60 | 150 | 8 | |
| RE-2×1300 | 0.3-2 | 400-1300 | 70 | 150 | 15 | |
| RE-2×1600 | 0.3-2 | 400-1600 | 70 | 150 | 15 | |
| RE-3×1600 | 0.4-3 | 400-1600 | 70 | 120 | 15 |
