Ridge Cap Tile Making Machine

  • Model : 2013/4/1804802112
  • Categories : Roll Forming Machine
  • Payment Terms : L/C,T/T
  • Brand Name : Reliance
  • Place of Origin : China
  • Application
  • Equipment List
  • Technical Parameters

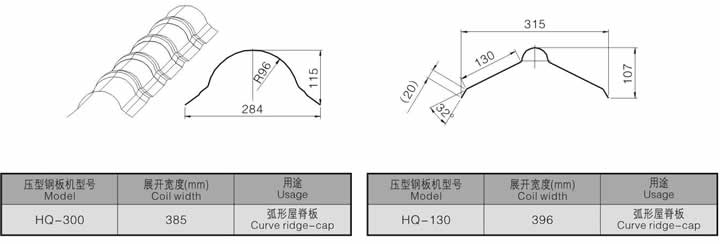

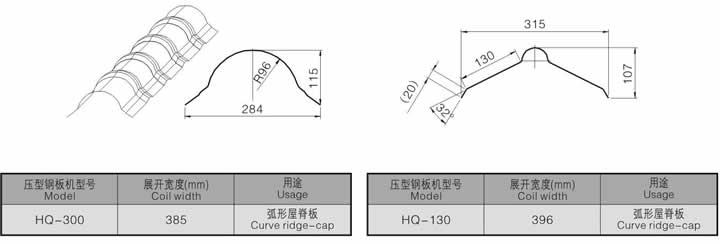

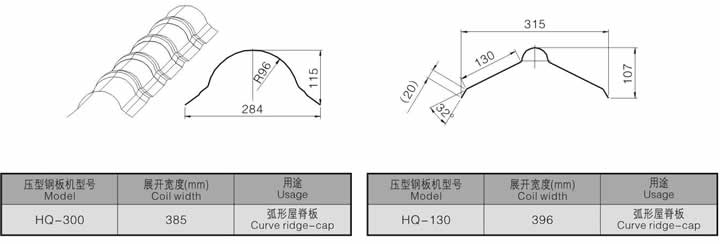

  • Profile Drawing
  • FAQs
  • Catalog

Metal ridge cap is recommended to prevent water, rain or snow leakage, for industrial and residential applications, enjoying simple installation. Ridge-stepping on cap is making match with step tile. Metal ridge cap roll forming machine is the essential for its production.

1. Hydraulic Decoiler with Breaking device is equipped for coil processing.
2. Rollformer with tooling
3. Hydraulic cut-off machine
4. Hydraulic pressing device
5. Run Out Table or automatic stacking device
6. Mitsubishi (Japan) PLC and Touchable Screen are used for data processing and setting.
7. Roll forming speed is 10– 20 meter / minute.

(1) Suitable Material:       PPGI Coil
(2) Material Width:       914 / 1000 / 1220 / 1250 mm
(3) Material Thickness:      0.40 — 0.80 mm
