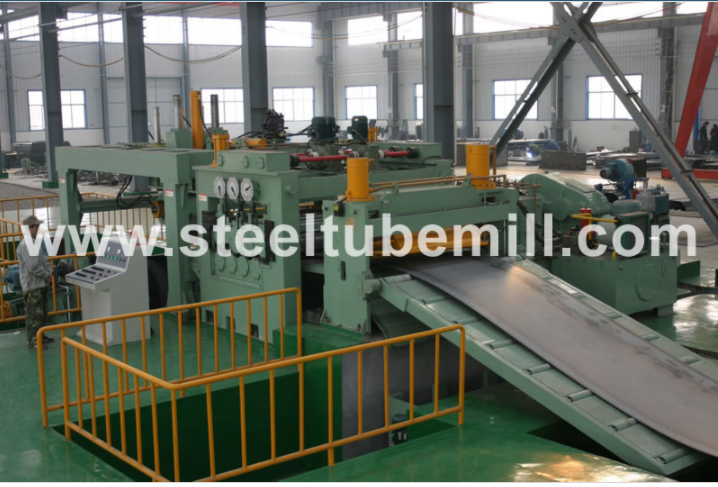

Heavy Gauge Cut To Length Line
- Model : 2013/4/8102225124
- Categories : Cut to length line
- Payment Terms : L/C,T/T
- Brand Name : Reliance
- Place of Origin : China
- Layout
- Technical Parameters
- FAQs
- Catalog
| 01.) Coil preparation 02.) Pay-off reel 03.) Pre-leveller 04.) Edge trimmer |
05.) Trimming scrap shear 06.) Leveller 07.) Cross-cut sheer |
|
| Strip width range | 800 – 2.300 mm | |
| Strip thickness range | 0.3 – 25,0 mm | |
| Coil weight | max. 40 t | |
| Sheet length | min. 500 mm / max. 12.000 mm | |
| Line speed | 60 m/min | |
| Model | 12×2000 | 16×2100 | 25×2300 |
| Processing Material | δs≤230N/mm2,Hot-rolled Coil, etc | ||
| Processing sheet Thickness | 3.0～12.00 | 4.0～16.0mm | 8.0～25.0mm |
| Cutting Edge Thickness | ≤10.0mm | ≤12.0mm | ≤16.0mm |
| Coil Width | 800～2000mm | 1000～2100mm | 1000～2300mm |
| Coil Weight | ≤25T | ≤30T | ≤40T |
| Coil O.D | φ610mm～φ820mm | φ610mm～φ820mm | φ610mm～φ820mm |
| Cutting Range | 500～12000mm | 500～12000mm | 500～12000mm |
| Cutting Accuracy | ±1.5mm | ±1.5mm | ±1.5mm |
| Line Speed | 0～25m/min | 0～25m/min | 0～25m/min |
