Door Frame Roll Forming Machine

  • Model : 2013/4/1800343592
  • Categories : Roll Forming Machine
  • Payment Terms : L/C,T/T
  • Brand Name : Reliance
  • Place of Origin : China
  • EQUIPMENT LIST
  • Technical Parameters

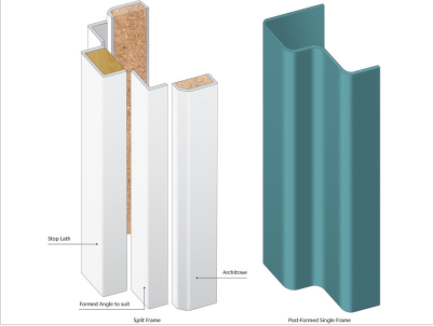

  • Profile Drawing
  • FAQs
  • Catalog

1. Hydraulic Decoiler with Breaking device is equipped for coil processing.
2.Leveler
3.Servo Roll Feeder
4. Online Multi Station Hydraulic Punching Equipment
5. Rollformer with tooling
6. Hydraulic cut-off machine
7. Run Out Table or automatic stacking device
8. Mitsubishi (Japan) PLC and Touchable Screen are used for data processing and setting.
9 Roll forming speed is 10 – 20 meter / minute.

(1) Suitable Material: Galvanized Sheet
(2) Material Width: as per profile
(3) Material Thickness: 0.8 – 1.2 mm
