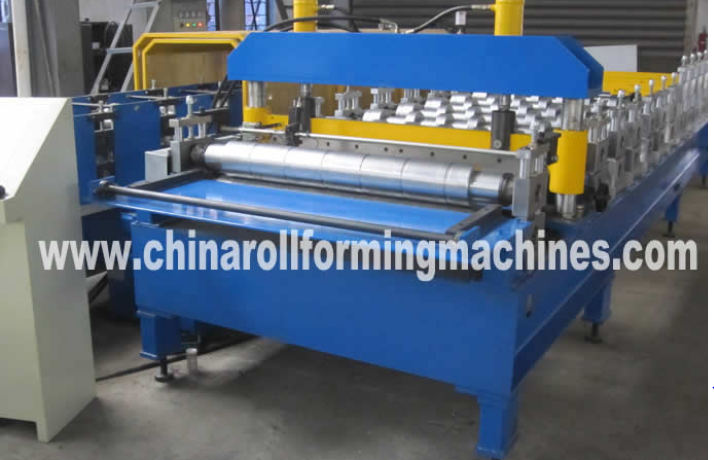

Cold Storage Panel Roll Forming Machine

  • Model : 2013/4/1802507695
  • Categories : Roll Forming Machine
  • Payment Terms : L/C,T/T
  • Brand Name : Reliance
  • Place of Origin : China

Metal ridge cap is recommended to prevent water, rain or snow leakage, for industrial and residential applications, enjoying simple installation. Ridge-stepping on cap is making match with step tile. Metal ridge cap roll forming machine is the essential for its production.
Cold storage panels function as walls, ceilings and roofs for cooler, freezer and food processing buildings, in new and retrofit construction. Cold storage panel roll forming machine is special designed for its skin sheet production.

1. Hydraulic Decoiler with Breaking device is equipped for coil processing.
2. Filming Device
3. Trimming Device
4. Servo Roll Feeder
5. Hydraulic Notching Press
6. Edge Rollformer with tooling
7. Hydraulic cut-off machine
8. Run Out Table or automatic stacking device
9. End Bending
10. Mitsubishi (Japan) PLC and Touchable Screen are used for data processing and setting.
11. Roll forming speed is 10 – 20 meter / minute.

(1) Suitable Material: PPGI Sheet
(2) Material Width: as per profile
(3) Material Thickness: 0.4 – 1.0 mm
