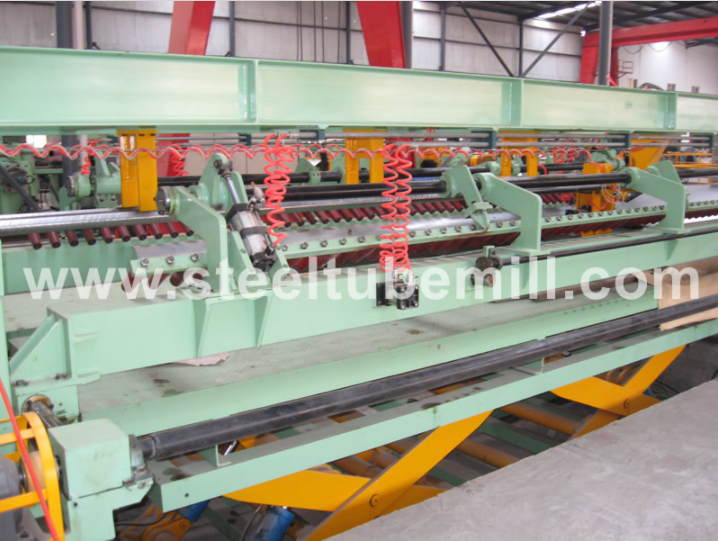

Cold Rolled Steel Cut To Length Line
- Model : 2013/4/8102501241
- Categories : Cut to length line
- Payment Terms : L/C,T/T
- Brand Name : Reliance
- Place of Origin : China
- Features
- Layout
- Technical Parameter
- FAQs
- Catalog
High quality on flatness
High precise cut to length control
High quality on cutting
Perfect stacking
High efficiency for production
Delightful man-machine interface
Easy and simpleness maintenance
| 01.) Coil preparation 02.) Pay-off reel 03.) Pre-leveller 04.) Edge trimmer |
05.) Trimming scrap shear 06.) Leveller 07.) Cross-cut sheer |
|
| Strip width range | 900 – 2.000 mm | |
| Strip thickness range | 0.3 – 3,0 mm | |
| Coil weight | max. 20 t | |
| Sheet length | min. 500 mm / max. 16.000 mm | |
| Line speed | 60 m/min | |
| Model | 1250 | 1600 | 1800 | 2000 |
| Processing material | Cold rolled steel coil, Galvanized coil, pre-painted coil, stainless steel coil, Aluminium coil, etc | |||
| Processing sheet thickness | 0.3-2.3mm | 0.3-3.0mm | 0.5-3.0mm | 0.5-3.0mm |
| Processing sheet width | Max. 1250mm | Max. 1600mm | Max. 1800mm | Max. 2000mm |
| Coil weight | Max. 15 Ton | Max. 20 Ton | Max. 20Ton | Max. 20 Ton |
| Cutting accuracy | ±0.3mm | ±0.4mm | ±0.5mm | ±0.5mm |
| Line speed | 60-80m/min | |||
