Carbon Steel Tube Mill
- Model : 2014102395029838
- Categories : Tube Mill
- Payment Terms : L/C,T/T
- Brand Name : Reliance
- Place of Origin : China
- Application
- Technical Parameters
- Equipment List
- Components
- FAQs
- Catalog
Furniture/ornamental for high quality tube with aesthetic surface
Automotive to comply with the high demand standard of automotive industry
Conduit electric cables conduits
Refrigeration tube
Work Flow:
Coil loading->Uncoiling->Pinching & Leveling->End Shearing–‐Strip joining->Hoop cage->Forming->HF Welding->Outside burr removal->Water Cooling->Sizing & straightening->Measuring roll->Flying saw cutting->Run out conveyor
| Raw material | Hot rolled steel, cold rolled steel, galvanized steel |
| Round tube outer diameter | 7-16mm |
| Wall thickness Round tube | 0.2-0.5mm |
| Square tube | |
| Rectangular tube | |
| Wall thickness Square & Rectangular tube | |
| Tube welding speed | 30-100m/min |
| Main DC Drive | 15kW |
| High frequency welder | 60kW |
| Entry section | ||||
| Uncoiler | Double Mandrel Uncoiler | |||
| Shear & End Welder | Automatic | |||
| Pneumatic shear | ||||
| Accumulator | Hoop Cage | |||
| Forming section | ||||
| Side guide & Flatten | Seven flattening roll | |||
| Round shape Forming | Conventional mill | Cassette-Bed Quick change | ||
| Welding section | ||||
| Seam guide stand | ||||
| Squeeze stand | ||||
| Outer weld bead removal | ||||
| H.F.Welder | Solid State | Vacuum Tube | ||
| Cooling unit | ||||
| Sizing & strengthening section | ||||
| Sizing | Conventional mill | Cassette-Bed Quick change | ||
| Turk Head | Single Station | |||
| Measuring roll stand | Speed & length measuring | |||
| Cutting & discharging | ||||
| Flying Saw | Pneumatic Friction Saw | Flying Cold Saw | ||
| Run out conveyor | One side | Double side | ||
1.Uncoiler
2.End shear and welder
3.Hoop Cage
4.Forming & Sizing Unit

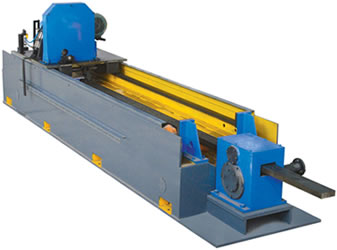

5.Cutting Saw
6.Solid State H.F. Welder
7.Mould and spare parts
