Carbon Steel Tube Mill Line

  • Model : 25mm×1.0mm -RE16
  • Categories : Tube Mill
  • Payment Terms : L/C,T/T
  • Brand Name : Reliance
  • Place of Origin : China

Furniture/ornamental for high quality tube with aesthetic surface
Automotive to comply with the high demand standard of automotive industry
Mechanical tube for precision tube as well as for high-resistant material
Conduit electric cables conduits
Work Flow:
Coil loading->Uncoiling->Pinching & Leveling->End Shearing->Strip joining->Hoop cage->Forming,–‐HF Welding->Outside burr removal->Water Cooling->Sizing & straightening->Measuring roll->Flying saw cutting->Run out conveyor

Raw material Hot rolled steel, cold rolled steel, galvanized steel
Round tube outer diameter 7-16mm
Wall thickness Round tube 0.3-1.0mm
Square tube
Rectangular tube
Wall thickness Square & Rectangular tube
Tube welding speed 30-90m/min
Main DC Drive 22kW
High frequency welder 60kW
Entry section

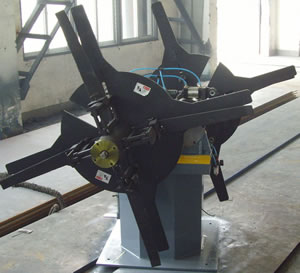

Uncoiler Double Mandrel Uncoiler
Shear & End Welder Automatic
Pneumatic shear
Accumulator Hoop Cage
Forming section
Side guide & Flatten Seven flattening roll
Round shape Forming Conventional mill Cassette-Bed Quick change
Welding section
Seam guide stand
Squeeze stand
Outer weld bead removal
H.F.Welder Solid State Vacuum Tube
Cooling unit
Sizing & strengthening section
Sizing Conventional mill Cassette-Bed Quick change
Turk Head Single Station
Measuring roll stand Speed & length measuring
Cutting & discharging
Flying Saw Pneumatic Friction Saw Flying Cold Saw
Run out conveyor One side Double side


2.End shear and welder

3.Hoop Cage

4.Forming & Sizing Unit

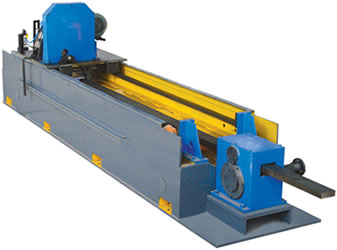

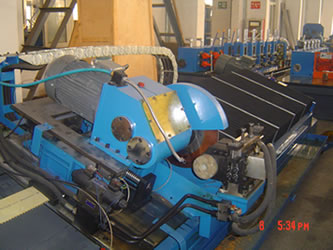

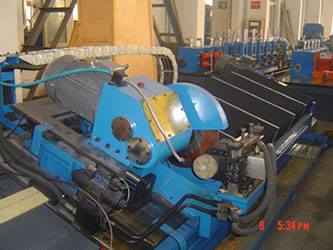

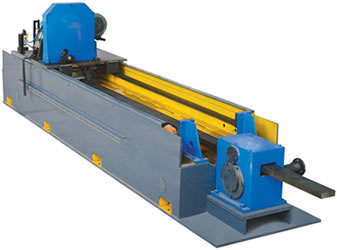

5.Cutting Saw


6.Solid State H.F. Welder

7.Mould and spare parts
