High Frequency Tube Mill

  • Model : 127mm×2.5mm-RE127
  • Categories : Tube Mill
  • Payment Terms : L/C,T/T
  • Brand Name : Reliance
  • Place of Origin : China

Furniture/ornamental for high quality tube with aesthetic surface
Automotive to comply with the high demand standard of automotive industry
Mechanical tube for precision tube as well as for high-resistant material
Structural high productivity and good mechanical properties
Conduit electric cables conduits
Water/gas to comply with the norms for
Heat exchanger for pressure, boiler and heat exchanger tubing
API for oil and natural gas
Steel profiles
Work Flow:
Coil loading—Uncoiling—Pinching & Leveling—End Shearing–‐Strip joining—Horizontal Spiral Accumulator—Forming,–‐HF Welding–Outside burr removal–Water Cooling–‐Sizing & straightening–‐Measuring roll—Flying saw cutting—Run out conveyor

Raw material Hot rolled steel, cold rolled steel, galvanized steel
Round tube outer diameter 32-127mm
Wall thickness Round tube 1.5-2.5mm
Square tube 25×25-100×100
Rectangular tube 30×20-120×60, 130×70
Wall thickness Square & Rectangular tube 2.0mm
Tube welding speed 30-60m/min
Main DC Drive 90kW×2
High frequency welder 350kW
Entry section
Uncoiler Single Mandrel Hydraulic Uncoiler
Shear & End Welder Semi-Automatic
Hydraulic shear
Accumulator Horizontal Spiral Accumulator
Forming section
Side guide & Flatten Seven flattening roll
Round shape Forming Conventional mill Cassette-Bed Quick change
Welding section
Seam guide roll stand
Squeeze roll stand
Outer weld bead removal
H.F.Welder Solid State Vacuum Tube
Cooling unit
Sizing & strengthening section
Sizing Conventional mill Cassette-Bed Quick change
Turk Head Single Station
Measuring roll stand Speed & length measuring
Cutting & discharging
Flying Saw Pneumatic Friction Saw
Run out conveyor One side Double side

1.Uncoiler

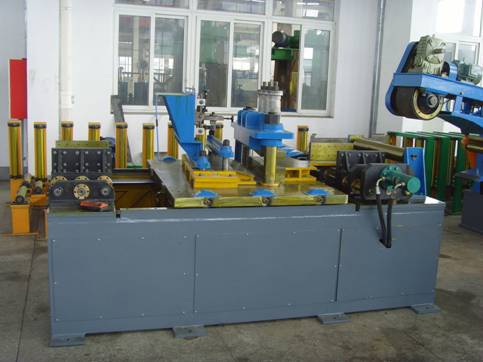

2.Welding table and shear

3. Spiral Horizontal Accumulator

4.Forming & Sizing Unit

5.Cutting Saw

6.Solid State H.F. Welder

7.Mould and spare parts
